7-inch LCD touch screen · Dual gun · OCPP 1.6J / 2.0

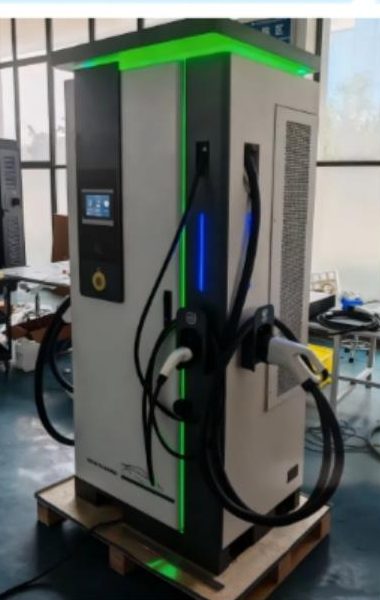

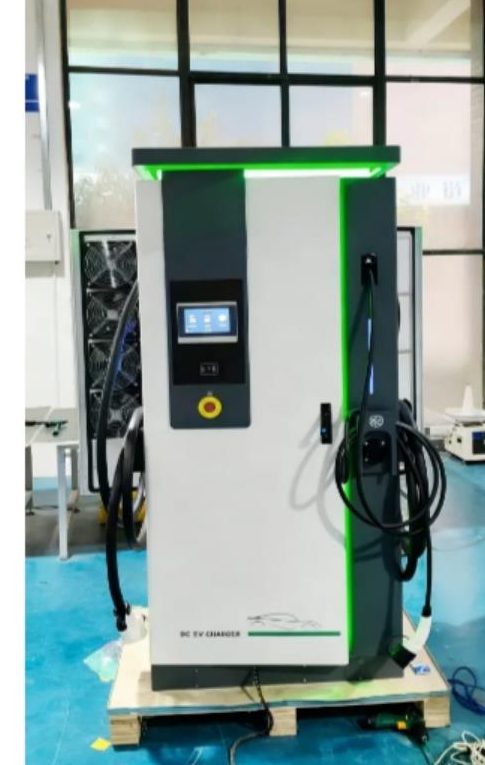

The BHDC-BH-10B-120KW is a 120kW dual-gun DC fast charging station built for high-traffic commercial sites. Two guns with up to 280A DC output let you serve vehicles back to back without queueing. A 7-inch LCD touch screen keeps on-site operation simple, and OCPP 1.6J / 2.0 support means the station drops straight into an existing charging network.
| Model Number | BHDC-BH-10B-120KW |
|---|---|
| Product Name | 7-Inch LCD Touch Screen Dual Gun EV Charging Station |
| Output Power | 120kW |
| Rated Power | 120kW |
| Input Voltage | 400VAC / 480VAC (3P+N+PE) |
| Output Current | 1–250A DC |
| Interface Standard | CCS1 / CCS2 / GB/T / CHAdeMO |
| Communication Method | OCPP 1.6J / OCPP 2.0 |
| Power Electronics Cooling | Air cooled / liquid cooled |
| Gun Cable Length | 5 m (customizable) |
| Purpose | Electric car charging |
| Certificate | CE / RoHS / ISO |
| Condition | New |
| Place of Origin | Jiangxi, China |
CCS1, CCS2, GB/T and CHAdeMO. Tell us your target market and we will confirm the matching configuration.
Yes. 6 m is standard, and other lengths can be produced to order.
Air cooling suits most temperate sites. Liquid cooling is available where higher ambient temperatures or continuous high-power duty apply.
The station supports OCPP 1.6J and OCPP 2.0, so it can connect to OCPP-compliant back-end platforms.
CE, RoHS and ISO.
Send us your target power, connector standard and quantity. Our team replies within one business day with pricing and lead time.
